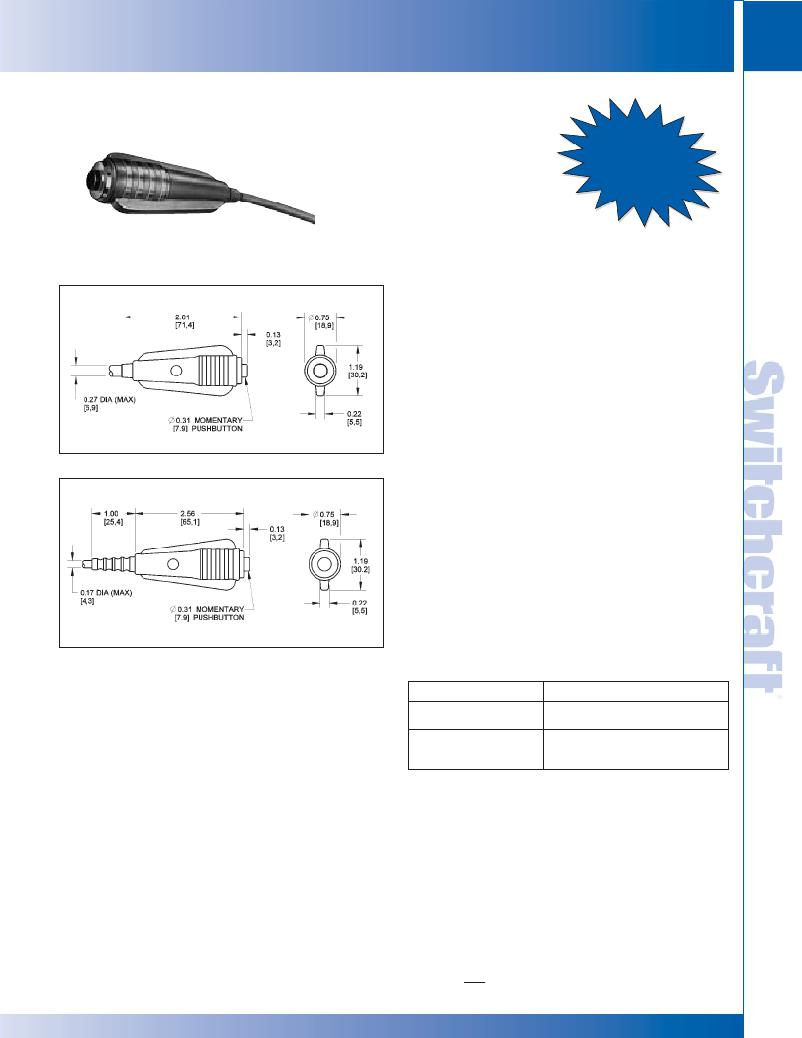

CORDETTE ? SWITCHES
PATCH CORDS & MOLDED CABLE ASSEMBLIES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
MOLDED CABLE ASSEMBLIES
245
Our s bo
C o rd e N e Se ut
S 9 d
Cod T 0
e 9
: 8
WITH CORDETTE ? SWITCHES
A k A
w
t t e ? le
1
ST900
Termination Code: 99
SPECIFICATIONS
SWITCH
Housing: White plastic (standard).
Molded Body: Gray plastic (standard) with contrasting trim
and gray pushbutton.
Contacts: Integral, copper alloy, hard gold-plated form 1-A, 0.5
A, 50 W maximum, AC, non-inductive load. Not recommended
for high voltage circuits.
Insulation: Thermoplastic UL 94V-0.
Button Color: Black (standard). Other colors available on
ST900
ST900F
special order.
CABLE
Standard Unshielded—Type W-1230.
Note: See Standard Cable Chart on page 260 for details.
We will build assemblies on cable furnished by you, .27" (6.68
mm) outside diameter, or on cable we purchase to your
specifications. Jacket must have temperature of 60° C minimum.
ST900 (#99)
Button stroke only .063" (1.6 mm). Cable leads soldered
directly to switch terminals. Standard button is with 1-A switching.
Use termination number “99” with all cable numbering charts
except multi-pin interconnection. Use code “198” for multi-pin
interconnections.
See Switch Section of Switchcraft’s Engineering Design Guide
for more details on the ST900.
Part Number
921
921K
Description
Cordette Switch,
phone jack termination
Same as 921, plus 6-foot,
2 conductor cable with stripped
and tinned leads.
SPECIAL ORDER FEATURES
?
?
?
?
?
1-B, 1-C, or 1-A + 1-B switching.
Red, green, blue, white or yellow pushbuttons.
Legends
Other body colors
ST-900 - Custom-molded to any of a large selection of
cables. Also many cable terminations, i.e., phone plugs,
extension jacks, phono plugs, spade lugs, alligator clips,
stripped and tinned leads, etc.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
